Power Distribution System
Setting new benchmarks in power efficiency, our advanced distribution solution ensures your infrastructure is inherently future-proof and operationally resilient.

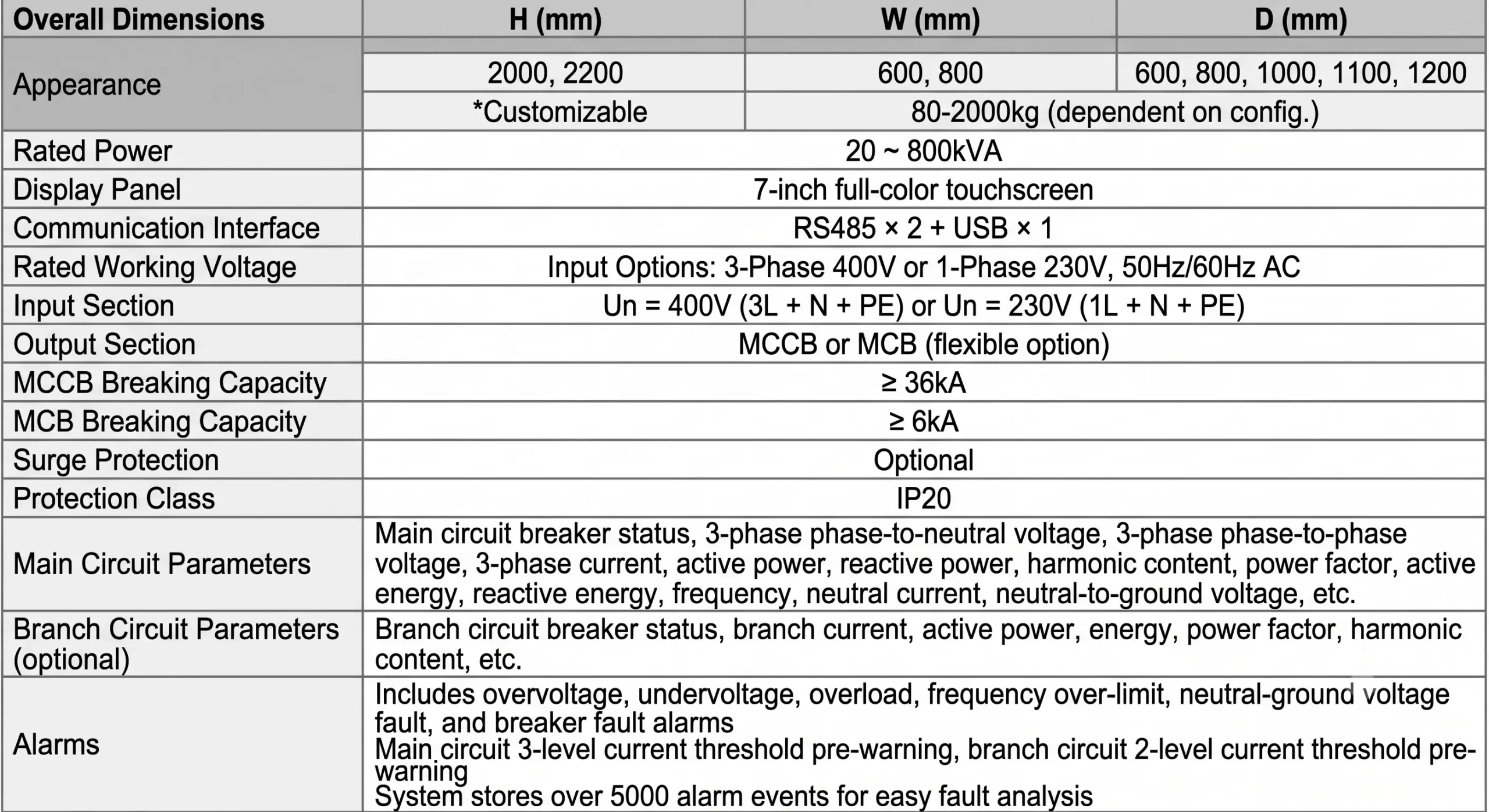

Power Distribution Cabinet
Product Introduction
Capacity: 20–800 kVA
Input Voltage: 380/400/415V
Output Voltage: 380/400/415V
Frequency: 50/60 Hz
In response to the vulnerability of traditional data center power infrastructure to single-point failures, Sunnycore has engineered the professional HE Series Precision Power Distribution Cabinet (PDC). This solution redefines the deployment and management of critical power distribution. Operating within a capacity range of 20 to 800 kVA, it is purpose-built for mission-critical data centers and server rooms across the financial, telecommunications, enterprise, and government sectors.
The entire power distribution system is housed within a standard 19-inch 42U server rack footprint and features a highly modular architecture. Complemented by a comprehensive selection of optional components, the HE Series empowers customers to configure highly reliable, custom-tailored power distribution systems that meet the exact requirements of their data centers.
Localized Intelligent Monitoring
Equipped with a 7-inch color LCD touchscreen display for the real-time monitoring of both main and branch circuits. Key monitored metrics include voltage, current, frequency, active and reactive power, energy consumption, and harmonics. It continuously records load curve variations and assesses system redundancy capabilities during partial faults.
Real-Time Risk Alerts
Triggers immediate on-site audio-visual alarms during system anomalies such as overloads, phase loss, or voltage fluctuations. It seamlessly integrates with facility monitoring systems to dispatch SMS or phone notifications, ensuring swift mitigation of potential risks. The interface retains up to 10 years of historical event and fault logs to facilitate comprehensive root cause analysis and accountability.
Branch Circuit Current Monitoring
Provides real-time current monitoring for all output branches with customizable two-stage alarm thresholds. For example, a 32A breaker can be configured with a primary high-current warning at 24A and a critical limit at 28A. This preemptive detection of operational hazards prevents localized overloads from triggering cabinet-wide power outages.
Standard Branch Breaker Status Detection
Continuously monitors the status of all output branch breakers. It immediately triggers an alarm in the event of a breaker trip caused by unexpected conditions such as current overloads, significantly accelerating troubleshooting and fault resolution times.
Hot-Swappable Breakers (Optional)
Enables electrical phase adjustments without modifying the existing distribution wiring, seamlessly facilitating three-phase load balancing. It also allows for the online addition of output branches and the replacement of breakers without interrupting power to the critical load.
Isolation Transformer (Optional)
Designed to convert power supply voltage levels and system configurations. It effectively isolates neutral line interference and minimizes neutral-to-ground voltage, delivering computer-grade grounding protection for highly sensitive downstream equipment.
EPO/REPO Functionality (Optional)
Features Emergency Power Off (EPO) and Remote Emergency Power Off (REPO) capabilities. In critical emergencies, operators can instantly sever the input power supply to ensure personnel safety and protect facility assets.
Surge Protection Module (Optional)
The system can be configured with an advanced surge protection device (SPD) to provide high-level defense against lightning strikes and transient overvoltage surges, safeguarding critical downstream infrastructure.

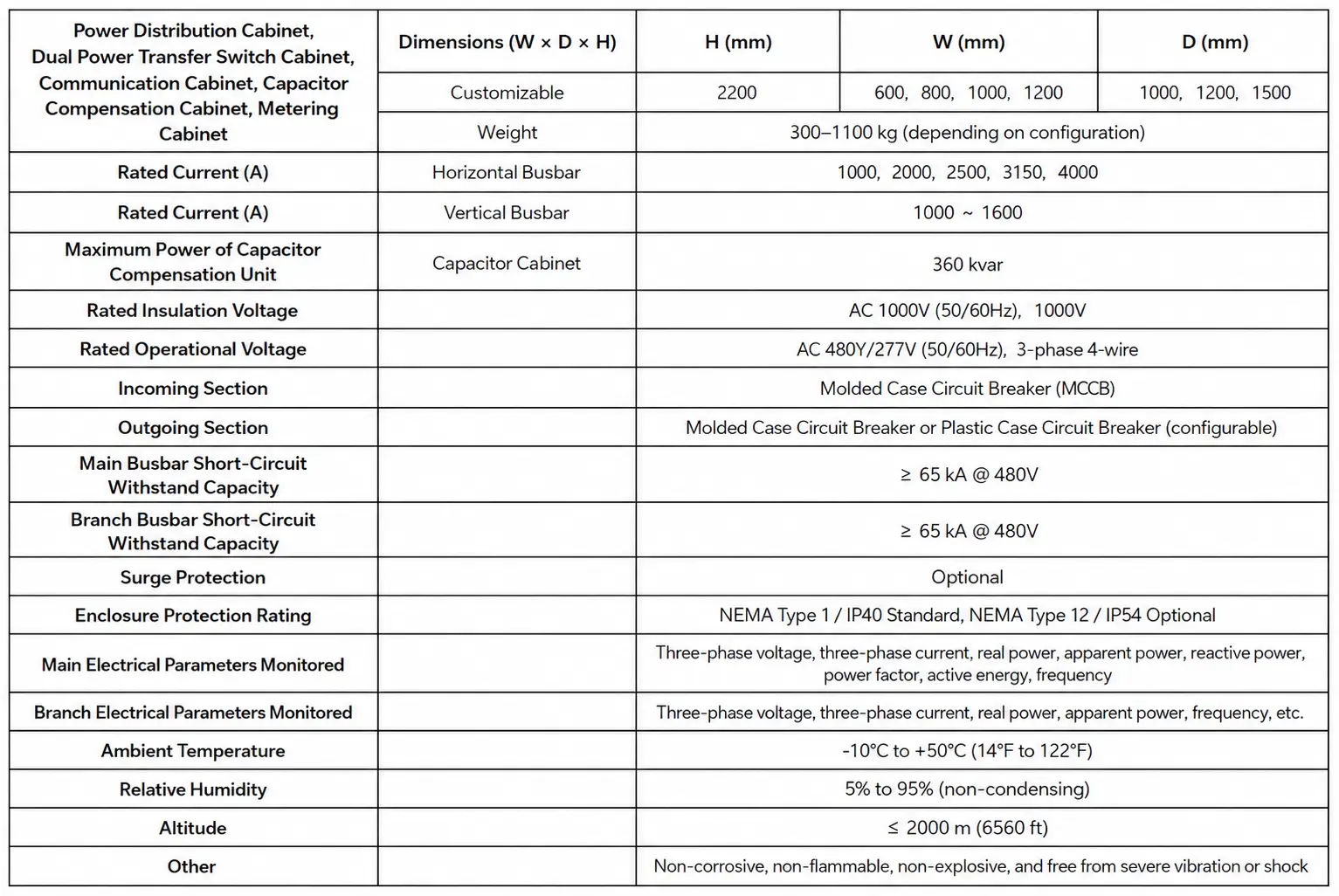

Low Voltage Cabinet
Product Introduction
The low-voltage switchgear is engineered for high breaking capacity, exceptional dynamic and thermal stability, and an advanced, optimized structural design. It offers highly flexible electrical configurations, comprehensive modularity, and universal compatibility, allowing various functional units to be seamlessly integrated into a single enclosure. Designed to accommodate a high density of circuits, the system significantly reduces the required installation footprint. Furthermore, it boasts a high Ingress Protection (IP) rating, ensuring superior safety, reliability, and ease of maintenance.
Superior Safety
Engineered for maximum safety, this switchgear features a highly organized internal layout equipped with independent neutral (N) and ground (PE) busbars to ensure secure operation. To effectively prevent fault propagation, the main busbar system is fully enclosed within an isolated compartment, achieving complete physical segregation from all other functional units. Furthermore, the system guarantees exceptional dynamic and thermal stability under severe short-circuit conditions, boasting a rated short-time withstand current (Icw) of up to 50kA for 1 second and a rated peak withstand current (Ipk) of up to 105kA.
Uncompromised Reliability
Delivering uncompromised reliability, the system integrates premium, virtually maintenance-free switchgear components from industry leaders such as Schneider Electric and ABB. It is comprehensively protected by advanced surge protection devices (SPD) that safeguard critical infrastructure against transient overvoltages and lightning strikes. Designed specifically for mission-critical power distribution, this system-level architecture offers highly customized continuous power solutions and concurrently maintainable (online) scalability, ensuring the uninterrupted operation of essential downstream loads.
Exceptional Flexibility
The switchgear offers exceptional flexibility through a standardized, modular architecture that supports versatile busbar coupling and adaptable top or bottom cable entry configurations. By maximizing the density of functional breaker units accommodated within a single enclosure, it provides users with highly versatile power distribution setups. Additionally, this modular approach allows for highly tailored physical layout arrangements based on specific site constraints, significantly minimizing the required installation footprint while achieving optimal power density.
Miniature Busbar
Product Introduction

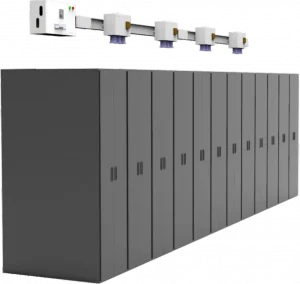

The track busway is an innovative power distribution system designed for data centers, characterized by its simplicity, rapid deployment, flexibility, and cost-effectiveness.
Customized tap-off boxes can be mounted anywhere along the busway using a unique twist-and-lock mechanism, seamlessly adapting to your specific power requirements. The system supports 400V / 415V / 480V AC power networks, featuring a maximum AC ampacity of up to 630A (IEC) / 600A (UL). Standard configurations range from 160A to 400A (with US equivalents typically available in 150A, 225A, 250A, and 400A ratings).
Optimized Total Cost of Ownership (TCO)
Maximizes data center whitespace by increasing cabinet utilization by 10%, driving higher ROI. Reduces installation costs by up to 50% compared to traditional cabling methods.
Streamlined Installation
Features a prefabricated, modular design that significantly minimizes on-site labor requirements. Cuts overall installation time by 30% compared to conventional power distribution systems.
Simplified Maintenance (Hot-Swappable)
Designed for maximum uptime. Allows for the safe addition, removal, or replacement of power distribution units (tap-off boxes) while the busway remains fully energized, ensuring zero operational downtime.
Sustainable & Eco-Friendly
Eliminates the need for auxiliary mounting materials and secondary on-site modifications. Both the busway track and power distribution units are fully reusable and easily redeployable for future facility upgrades.
Unmatched Versatility
Offers highly customizable track lengths, electrical specifications, and configurations. An extensive range of tap-off boxes combined with comprehensive power monitoring capabilities makes it the premier choice for critical end-point power distribution.
Port Box
Bus Trunking
Comparison of surface areas of different copper busbars
| Copper Busbar Shape | Flat Copper Busbar (4*25) | U-shaped Copper Busbar (1.0*84) |
|---|---|---|
|
Total heat dissipation area (taking 3m² as an example) |
（15+15+24）*3000+81 |
（84+84+2.0）*3000+84 |
|
Total heat dissipation area (mm²) |
162081 |
510084 |
Product Introduction

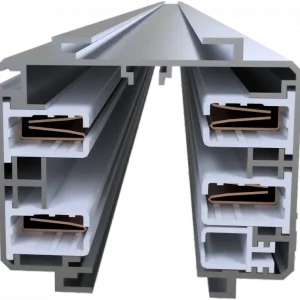

High-Strength, Non-Magnetic Magnesium-Aluminum Alloy Enclosure
Superior Structural Integrity: Supports up to 200 kg (440 lbs) over a 3-meter (10 ft) span with zero deflection or deformation.
Optimized Lengths: Factory-customizable lengths available to minimize field modifications and eliminate material waste.
Segregated Cabling: Features an independent low-voltage/communications channel, providing physical isolation from power cables to prevent electromagnetic interference (EMI).
Enhanced Protection: An innovative film-coated dust cover improves Ingress Protection (IP/NEMA) ratings while maintaining a sleek, professional aesthetic.
High-Insulation, Flame-Retardant, Finger-Safe Continuous Slot
Advanced Materials: Constructed from high-performance, flame-retardant insulating polymers.
Thermal & Fire Ratings: Carries a UL 94 V-0 flammability rating with a continuous temperature endurance of ≥130°C (266°F).
Dielectric Strength: Meets Class B insulation standards with a dielectric withstand voltage of ≥5000V.
Electrical Safety: Engineered with a generous creepage distance of 40 mm (1.57 in) and an IP2X “finger-safe” design to prevent accidental contact with live components.
High-Conductivity OFE Tin-Plated Copper Busbars
Premium Copper Grade: Utilizes industry-leading Oxygen-Free Electronic (OFE) grade solid copper busbars with continuous, unpierced profiles, featuring 99.98% purity and 101% IACS electrical conductivity.
Superior Plating: Employs an eco-friendly immersion tin plating process, delivering exceptional oxidation resistance and ultra-low contact resistance.
High-Reliability Connections: Engineered to deliver up to 150 N (33.7 lbf) of bi-directional contact pressure, ensuring ultra-reliable and secure power tap-offs.
Optimized Thermal Management: Custom-profiled busbar geometry maximizes the surface area for superior heat dissipation and enhanced operational safety under heavy electrical loads.
Plug Box
The Tap-Off Box (Plug-in Unit) is engineered for seamless, tool-less installation at any point along the busway track, efficiently delivering up to 130A of 3-phase power distribution. Designed for optimal reliability, it features an aluminum alloy chassis for superior heat dissipation and strict physical segregation between high-voltage power and low-voltage communication circuits, which prevents electromagnetic interference (EMI) and extends the lifespan of the internal modules. Furthermore, this highly maintainable unit is fully equipped with advanced smart metering capabilities, providing real-time telemetry on comprehensive electrical parameters, total energy consumption, and internal operating temperatures.
Small Busbar System
The Compact Busway System is a highly economical, rack-level power distribution solution engineered specifically for data center environments. Utilizing flat solid copper busbars as the primary conductive medium, it allows for highly accelerated and streamlined deployment. To accommodate diverse IT infrastructure requirements, the system is available in two distinct configurations: fixed-receptacle models and fixed-position tap-off box (plug-in unit) models.
Exceptional Cost Efficiency
Engineered to completely replace traditional Remote Power Panel (RPP) and bulky power cable distribution architectures, significantly reducing upfront material costs and long-term operational expenses.
Rapid & Streamlined Deployment
Eliminates the complexities and time-consuming hassles associated with traditional heavy cable routing, ensuring a fast, seamless, and highly efficient installation process.
Superior Thermal Performance
Utilizes premium electrical-grade solid copper busbars (C11000/ETP equivalent). The system features a decentralized thermal architecture that maximizes natural air convection for optimal and safe heat dissipation.
Optimized Spatial Footprint
Features an innovative, highly compact 2-in-1 integrated design combining the busway track and tap-off units, maximizing valuable whitespace within the data center environment.
Simplified Maintenance & Agility
Built upon a fully modular and highly customizable architecture tailored to meet comprehensive facility requirements, facilitating effortless scalability, routine maintenance, and future upgrades.
